PVC High Speed Door for Industrial Workshops and Warehouses

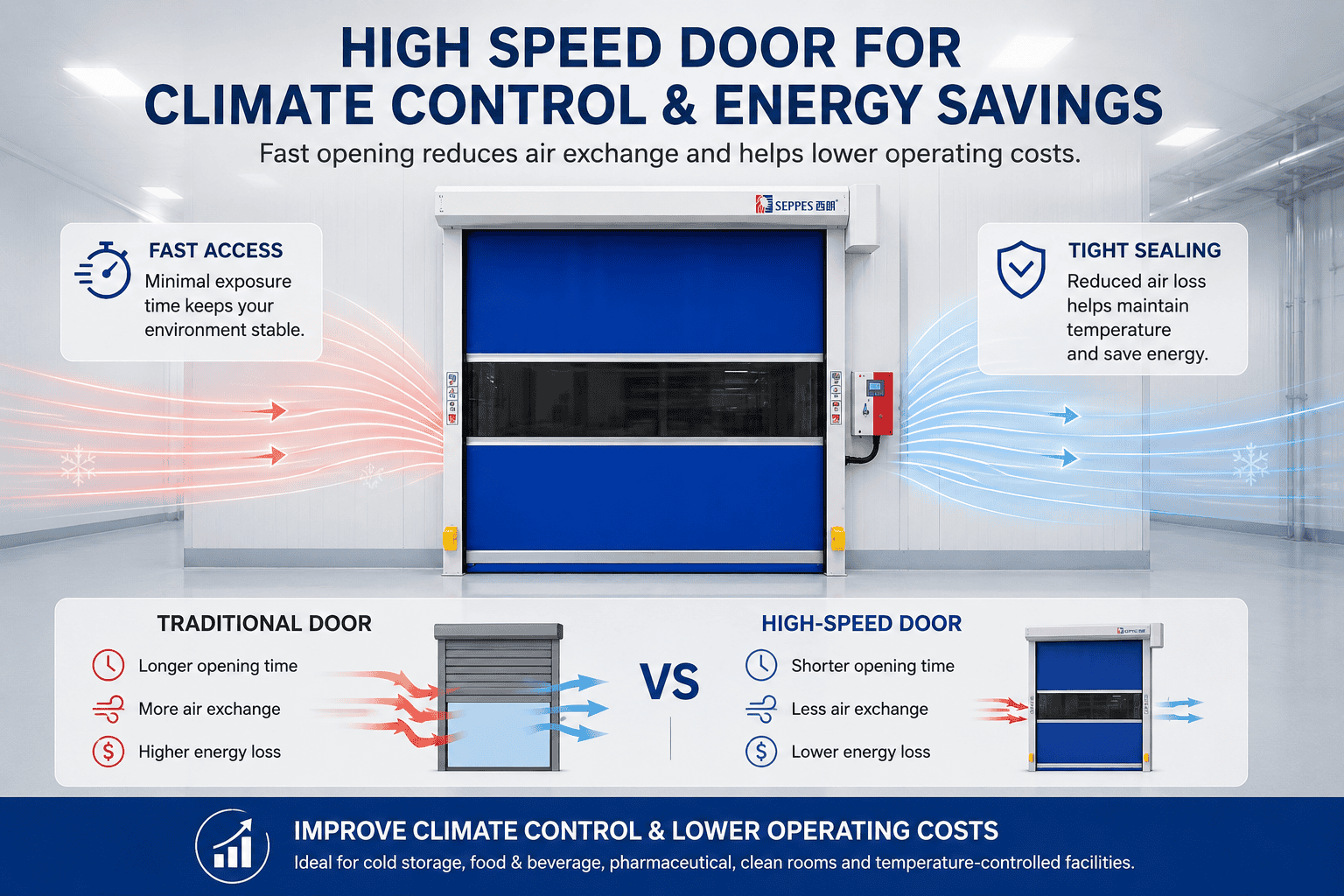

SEPPES PVC high speed door is an automatic rapid roll-up door for factories, warehouses, cleanrooms and industrial production areas that need fast, frequent and reliable access. The flexible PVC curtain opens quickly to help improve traffic flow while reducing dust, insects, noise and unwanted air exchange between working zones.
Each industrial PVC rapid door can be customized according to opening size, operating frequency, installation environment, control method, curtain color and safety requirements.
What Is a PVC High Speed Door?

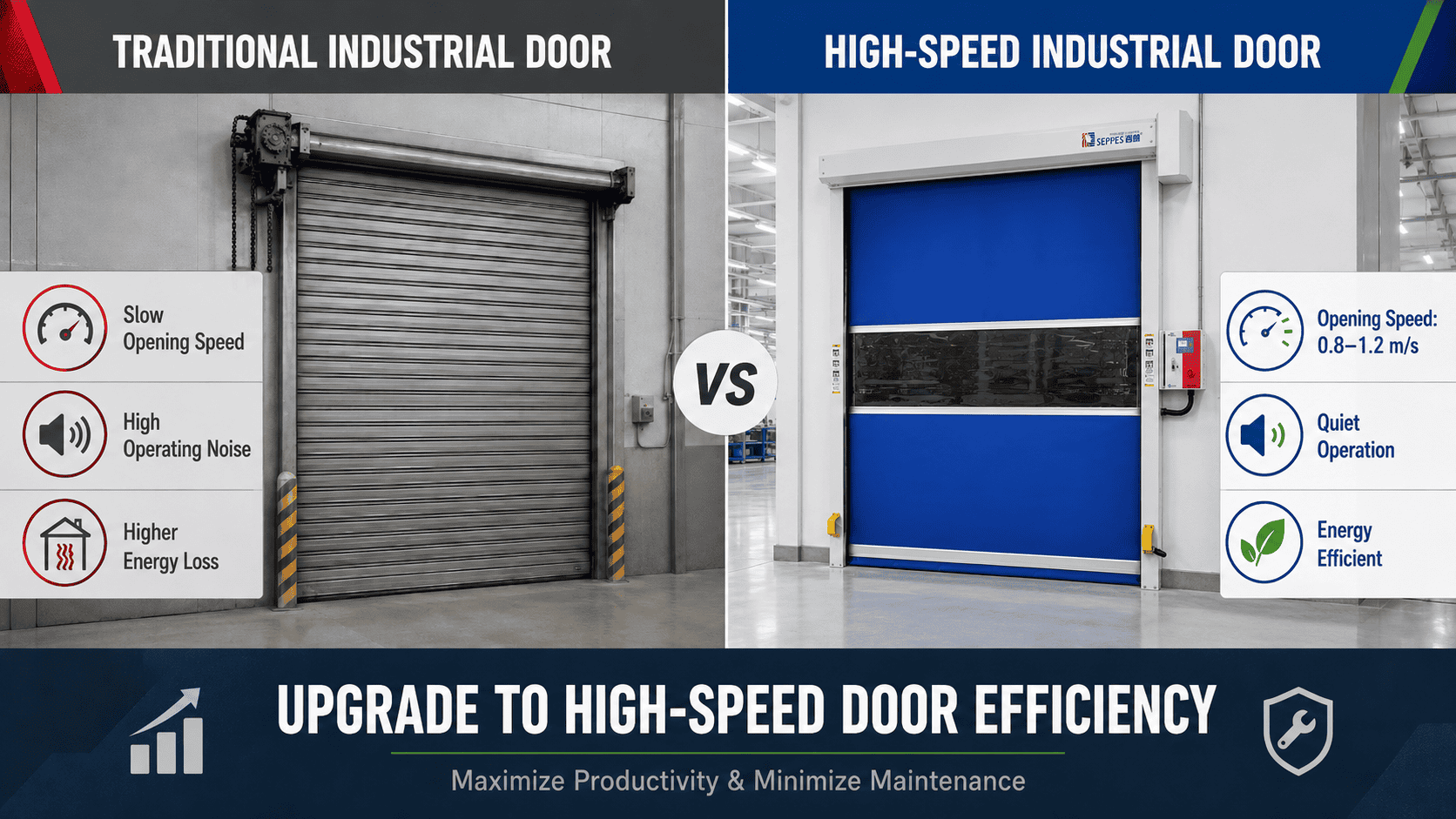

A PVC high speed door, also called a PVC rapid roll-up door or fast rolling door, uses a flexible curtain that rolls upward into a compact top cover. Compared with a conventional slow-opening industrial door, it helps reduce waiting time at busy internal openings and supports a cleaner, more controlled production environment.
It is especially suitable for locations where forklifts, workers and materials move frequently. The door can be configured with radar, pull cord, push button, geomagnetic or other automatic activation methods to match the daily workflow of the facility.
Main Features
- Fast opening and closing helps improve workflow at high-traffic industrial openings.
- Flexible PVC curtain is suitable for frequent rolling operation.
- Brush seals and side guides help reduce dust, insects, noise and air leakage.
- Optional transparent vision window improves visibility and natural light.
- Multiple activation methods are available for forklift, personnel and automated traffic.
- Safety devices can include infrared sensors, safety bottom edge and emergency stop.
- Frame material, curtain color, dimensions and control language can be customized.
- Suitable for factories, warehouses, cleanrooms, food facilities and logistics areas.

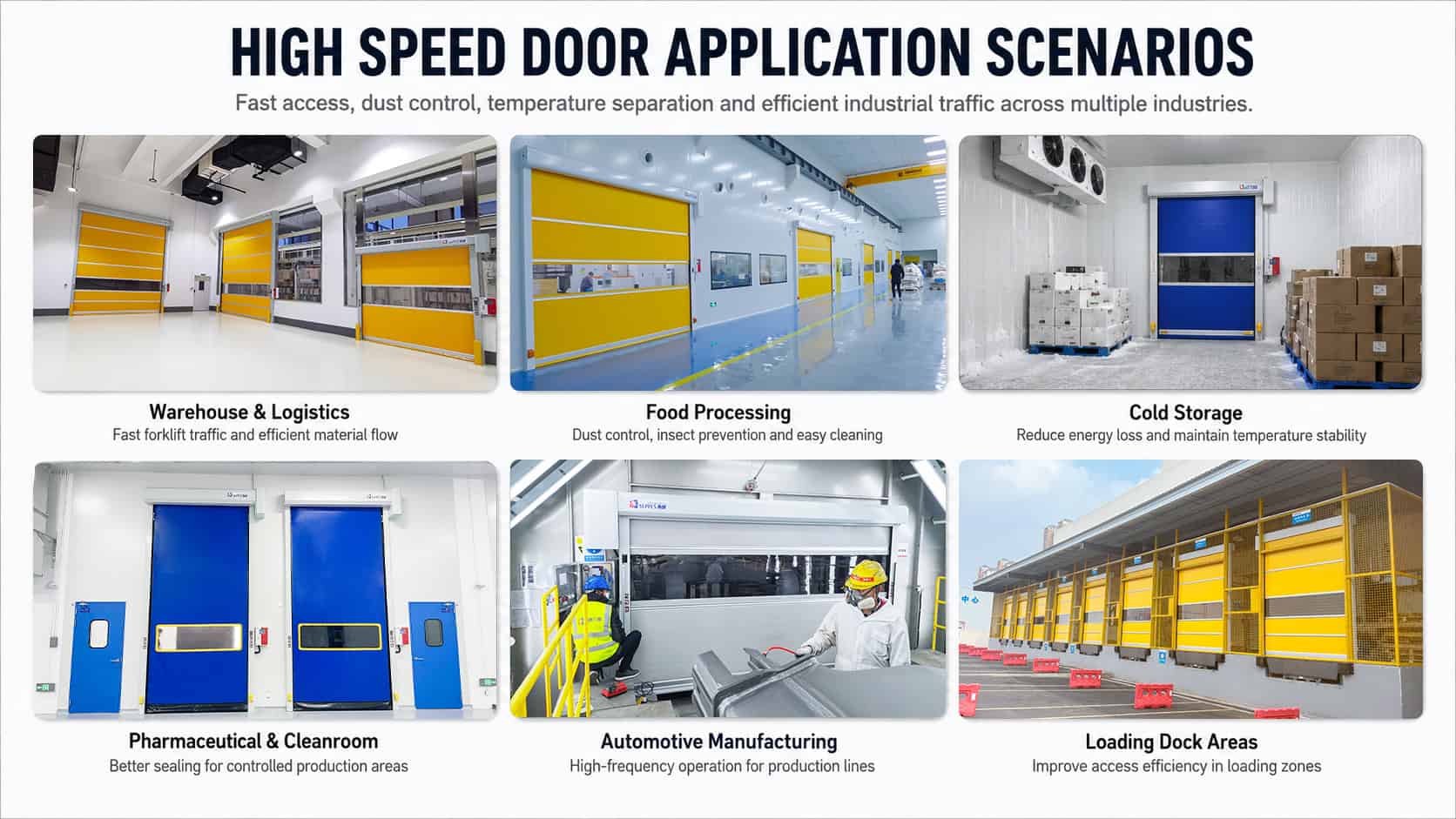

Best-Fit Applications
Manufacturing Workshops
For separating production areas, improving material movement and reducing dust transfer in busy factory environments.
Warehouses and Logistics Centers
For internal warehouse passages and logistics routes with frequent forklift and personnel movement.

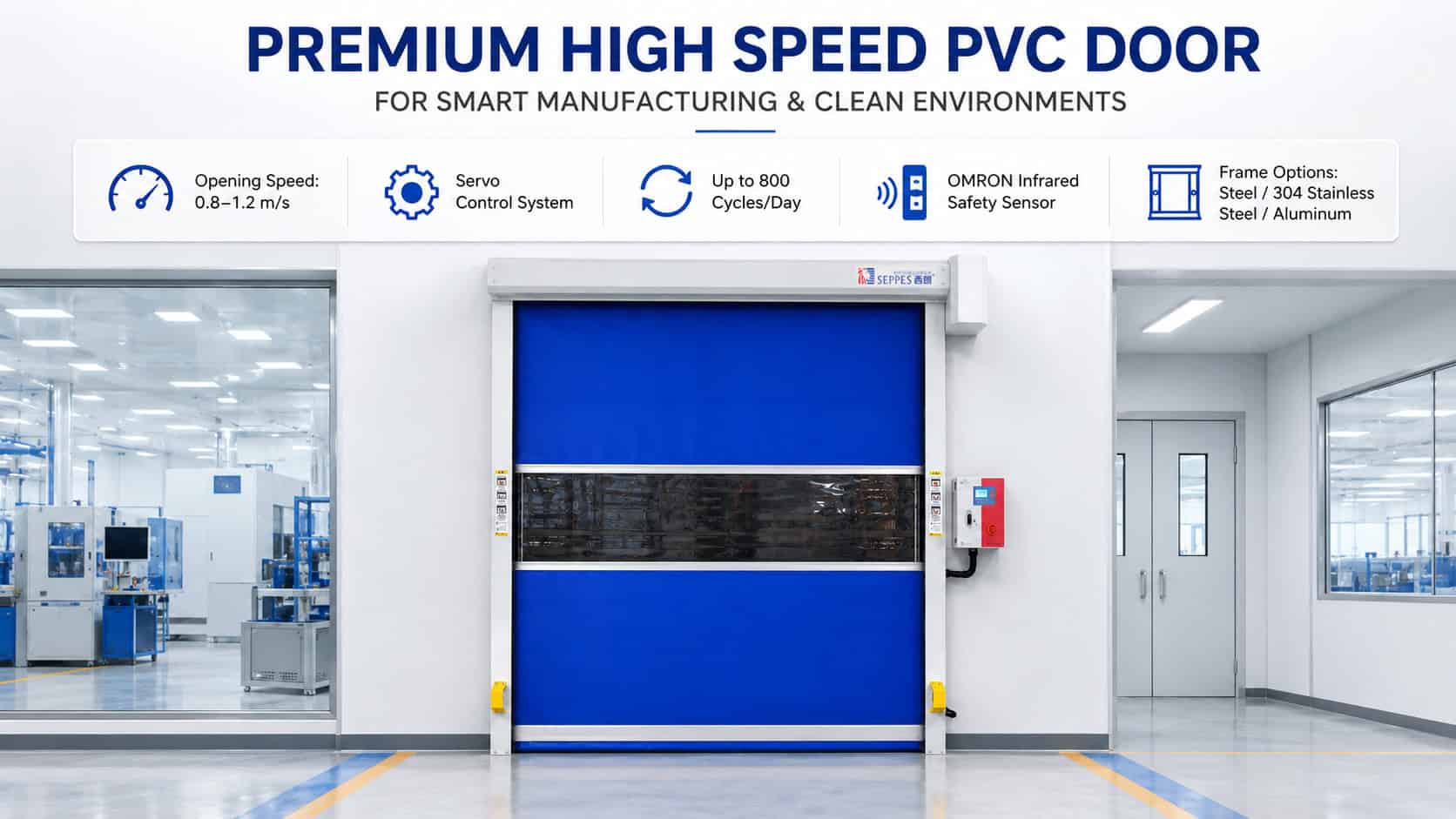

Cleanrooms and Electronics Plants
For controlled production areas where reducing dust movement and unnecessary air exchange is important.
Food and Beverage Facilities
For processing, packaging and storage areas that need rapid access and better separation between work zones.
Automated Production Lines
For AGV routes and automated production passages that require sensor-based, hands-free door activation.
Pharmaceutical and Medical Areas
For facilities that need frequent access while maintaining separation between production, storage and service areas.

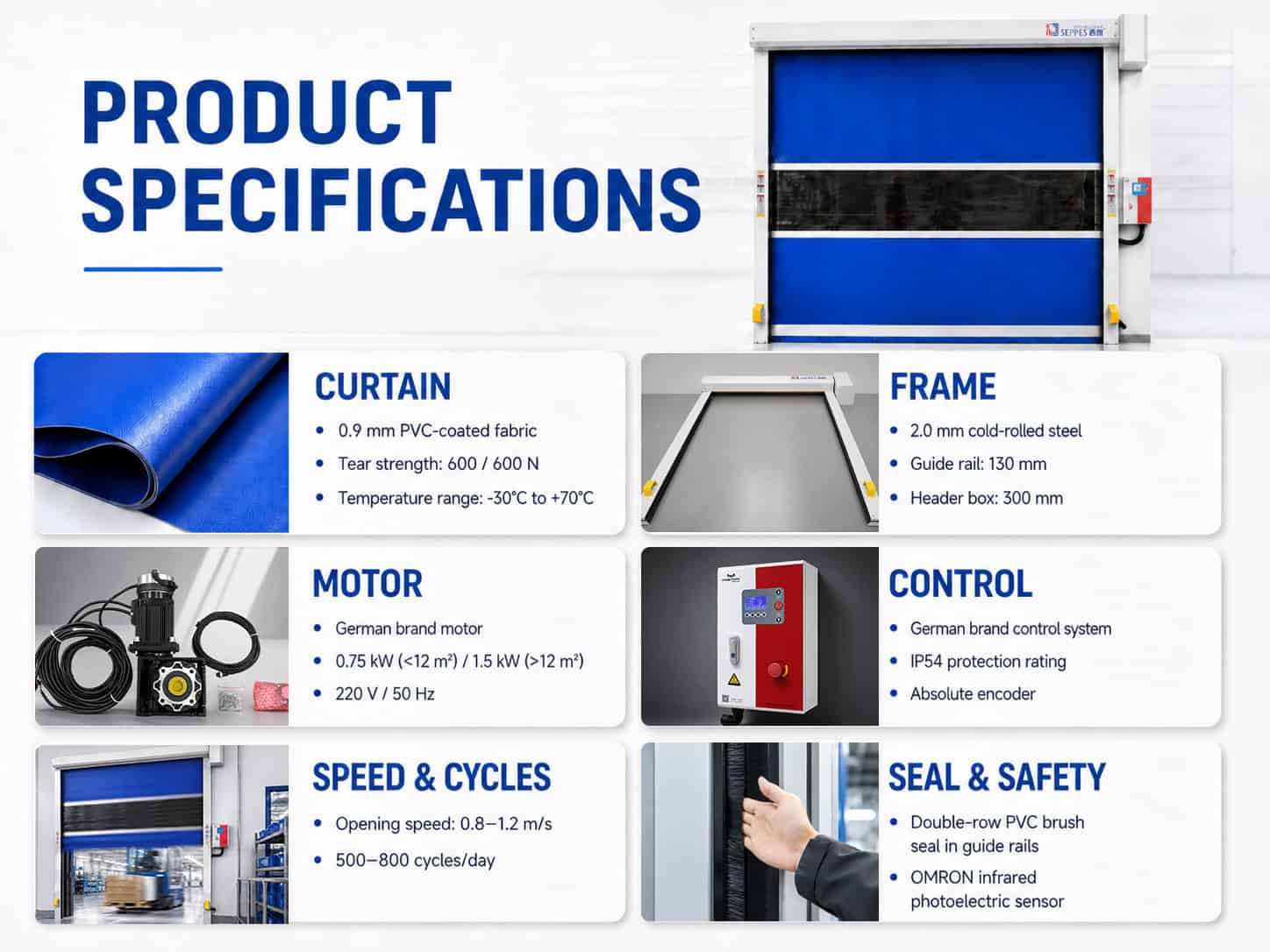

Technical Specifications
| Product Name | PVC High Speed Door |
|---|---|
| Door Type | Automatic PVC rapid roll-up door |
| Curtain Material | Flexible PVC curtain with optional transparent vision window and wind-resistant bars |
| Opening Speed | Typically 0.8–1.2 m/s, depending on door size and configuration |
| Motor Power | Typically 0.75 kW / 1.5 kW, depending on project requirements |
| Power Supply | 220V / 50Hz or customized according to local electrical requirements |

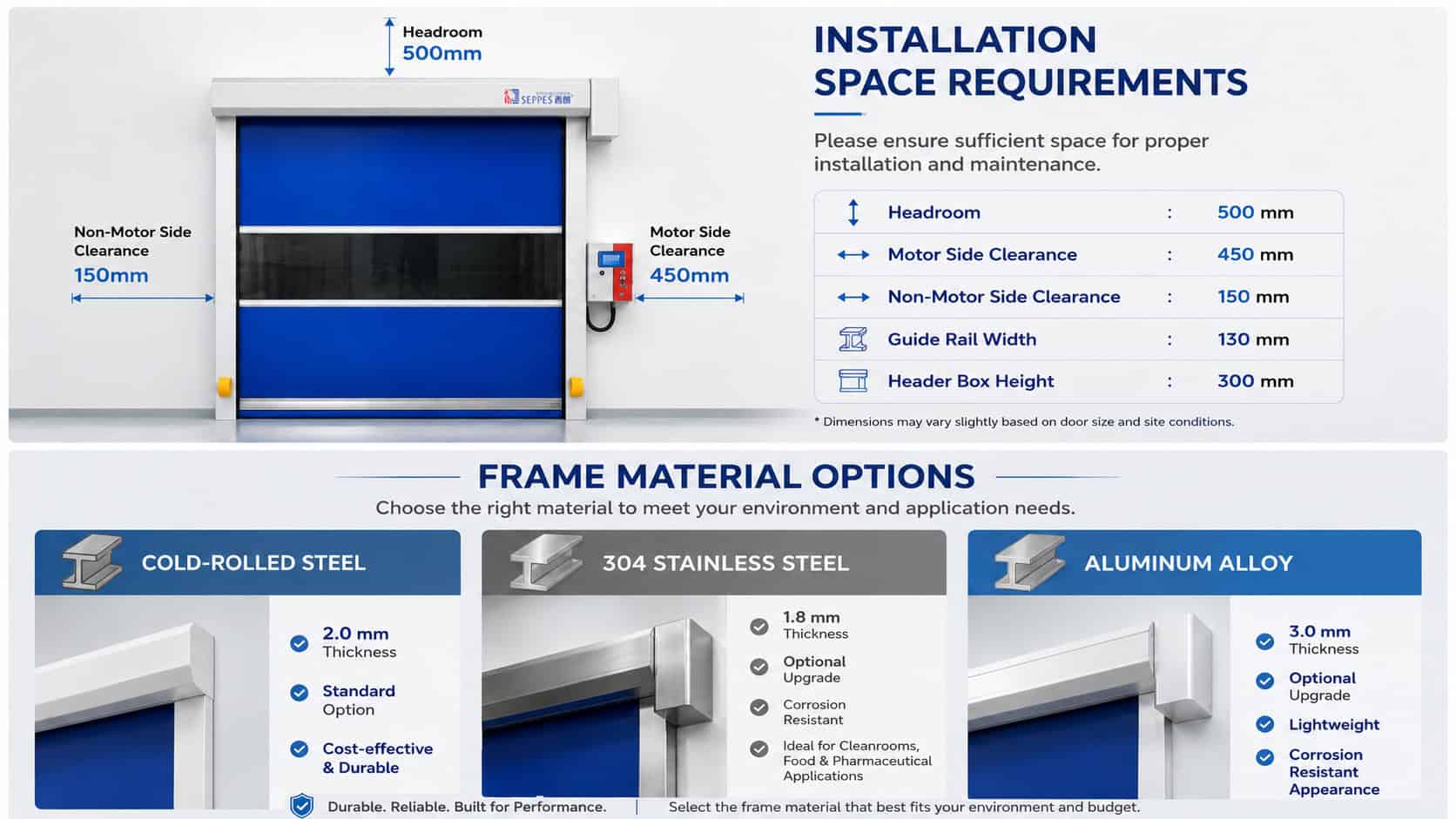

| Frame Options | Painted steel, galvanized steel, SUS304 stainless steel or aluminum alloy |
| Control Methods | Push button, radar, pull cord, remote control, geomagnetic sensor or customized automatic control |
| Curtain Colors | Red, yellow, blue, white, gray, transparent or customized colors |
| Door Size | Customized according to the opening width, height and installation environment |
| Typical Service Life | 8–10 years with suitable operation and maintenance |
| Application | Factories, warehouses, cleanrooms, food facilities, logistics areas and industrial workshops |

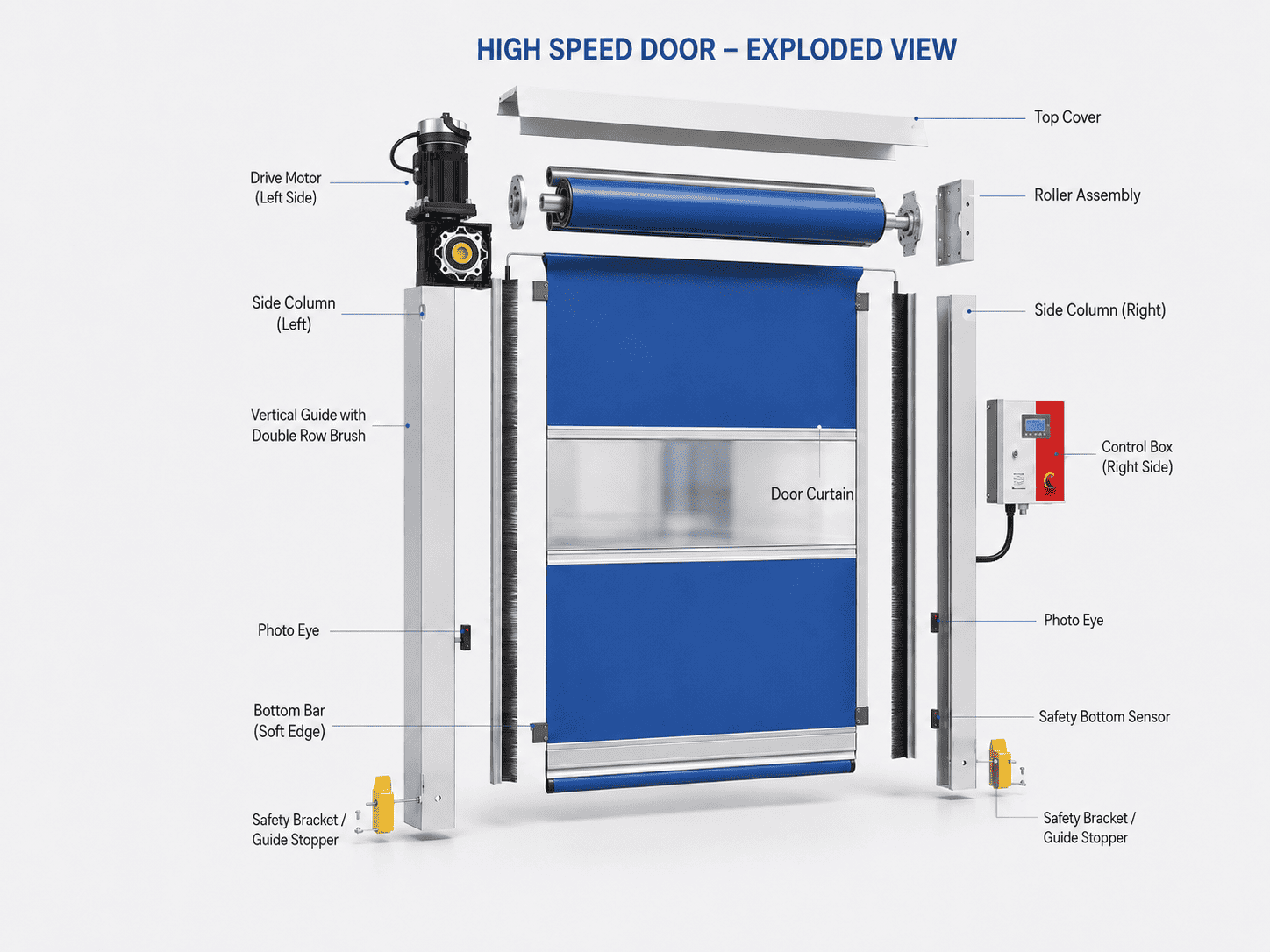

PVC Curtain and Sealing System
The flexible PVC curtain is designed for repeated rolling movement and can include transparent sections for better visibility. Side guides and brush seals help reduce dust, insects, noise and unnecessary air flow through the doorway.
For applications with pressure differences, frequent traffic or higher wind requirements, the door can be configured with suitable wind-resistant bars, guide rails and sealing accessories.

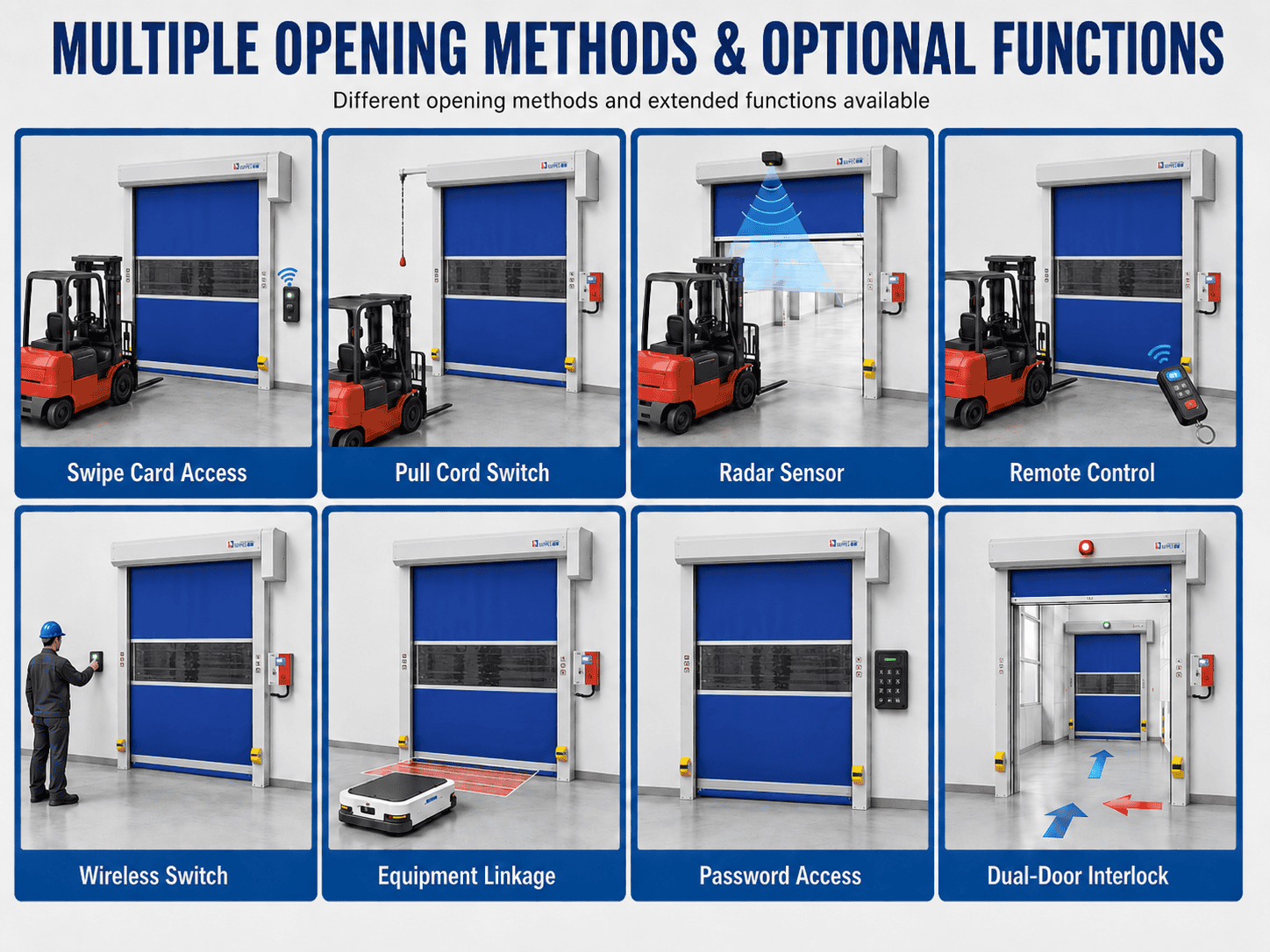

Control and Safety Configuration
A high speed door should match the actual movement pattern of the facility. SEPPES can recommend a suitable activation method and safety configuration for workers, forklifts, AGVs and other equipment.
- Radar sensor for hands-free personnel or vehicle approach activation.
- Pull cord switch for forklift lanes and warehouse traffic routes.
- Geomagnetic sensor for vehicle-based automatic opening.
- Push button, remote control and manual control options.
- Infrared sensor and safety bottom edge to help detect obstacles during closing.
- Emergency stop and manual release for safer daily operation.
Custom Configuration Options
SEPPES can customize each PVC rapid door according to the project opening, operating environment and required workflow. Before quotation, you can send us the opening size, installation position, traffic type and preferred control method.
- Door width and height
- Curtain color, transparent window and curtain configuration
- Frame material and corrosion-resistance requirement
- Radar, pull cord, geomagnetic or other activation method
- Safety sensor, safety bottom edge and warning accessories
- Control box language, electrical requirement and project-specific options
Project Use Cases
Clean Production Area
For separating clean production zones and helping reduce dust transfer during frequent personnel and material movement.
Warehouse Internal Partition
For organizing traffic between storage, packaging and dispatch areas without slowing down forklift operation.
Automated Factory Passage
For automated routes where radar, geomagnetic or other sensors can support hands-free door activation.

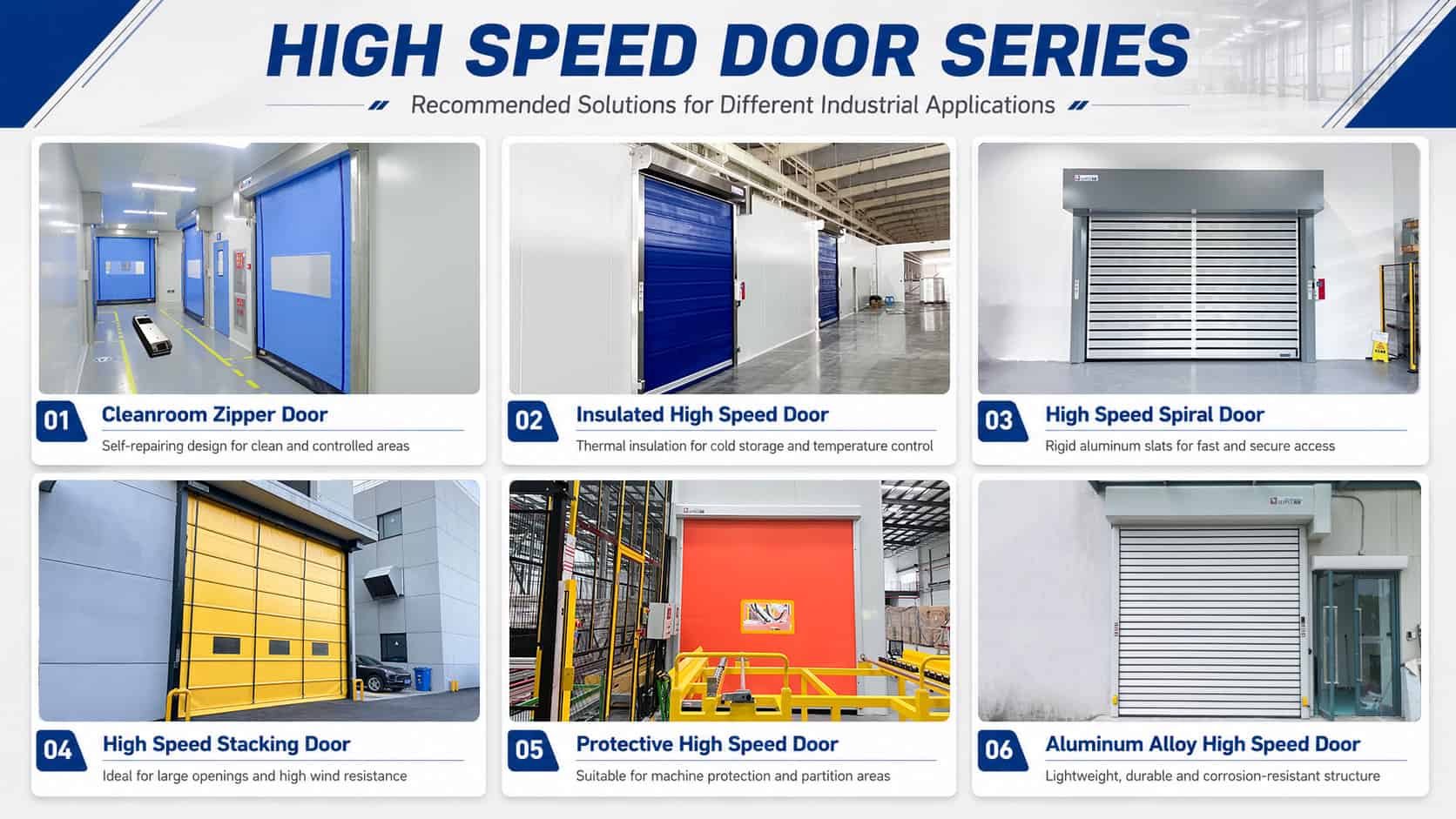

Related High Speed Door Solutions
Different operating environments may require a different high speed door structure. You can also explore the following SEPPES solutions:
Why Choose SEPPES
SEPPES provides customized industrial door solutions for factories, warehouses, cleanrooms and logistics facilities. We help buyers match the PVC curtain, frame material, motor, control method and safety configuration to the actual project instead of using a one-size-fits-all door solution.
Our team can support product selection, technical communication, production, packing, export and after-sales service for international industrial door projects.

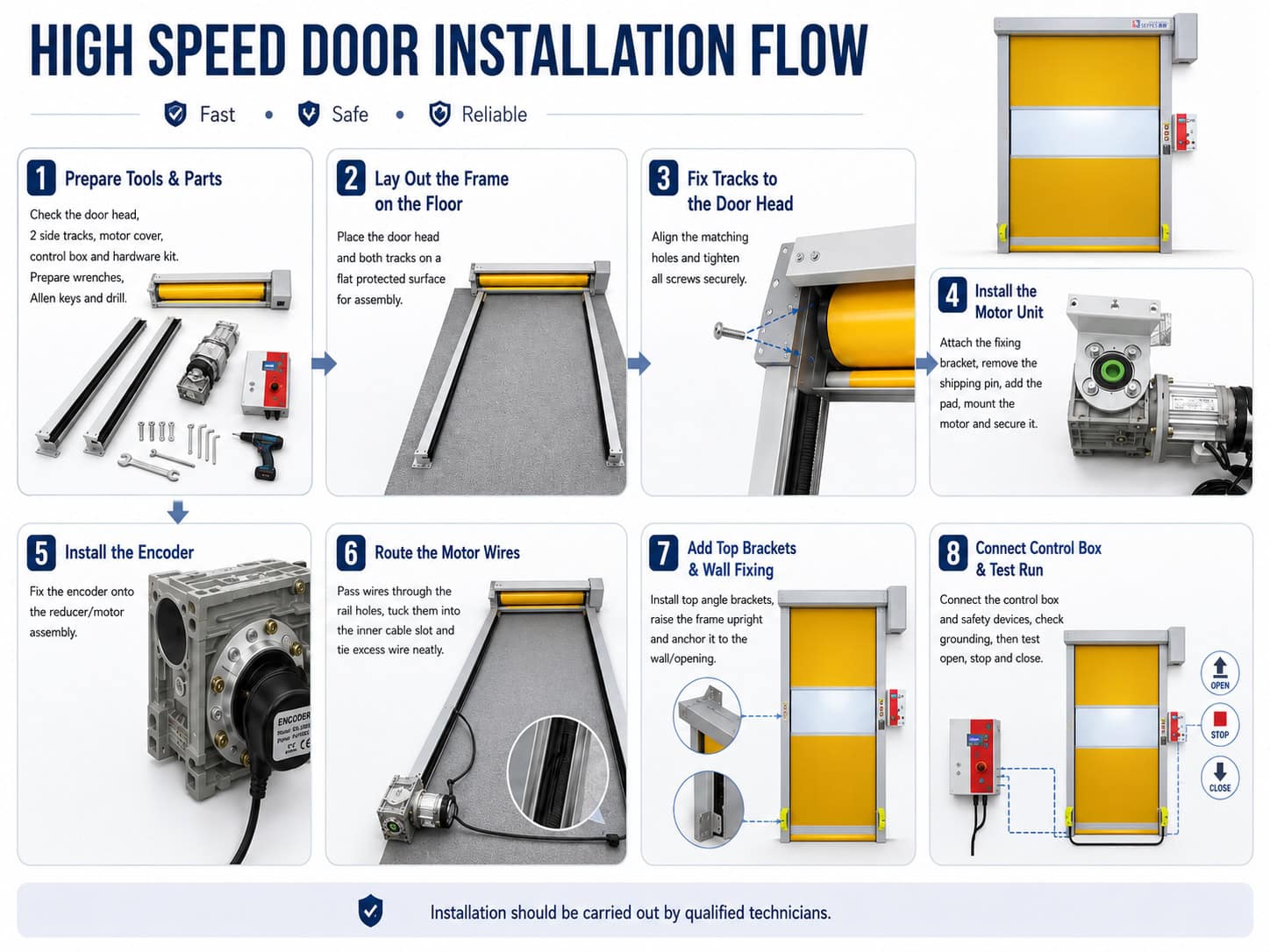

Installation and Commissioning Support
A PVC high speed door should be installed by qualified technicians. We can provide product information and technical support to help the project team prepare the opening, frame position, electrical connection and control configuration before commissioning.
Information Needed for a Quotation
- Door opening width and height
- Installation country and project industry
- Indoor, cleanroom or warehouse application
- Traffic type and required daily opening frequency
- Preferred curtain color, frame material and control method
- Need for window, safety sensors, radar, pull cord or other accessories
FAQ
What is a PVC high speed door used for?
It is used for factories, warehouses, cleanrooms, food facilities and industrial workshops that need frequent, fast and controlled access.
How fast does a PVC rapid roll-up door open?
The typical opening speed is 0.8–1.2 m/s. The final speed depends on door size, motor and selected control configuration.
Can the door size and color be customized?
Yes. The opening size, PVC curtain color, transparent window, frame material, motor and control method can be customized for the project.
What activation methods are available?
Available options can include push button, radar, pull cord, remote control and geomagnetic sensor, depending on the traffic type and workflow.
Is the door suitable for cleanroom or food applications?
It can be configured for controlled production areas where reducing dust transfer and unnecessary air exchange is important. Please tell us the cleanliness and operating requirements before quotation.
What information is needed before quotation?
Please provide the opening size, installation environment, traffic type, required quantity, preferred color and preferred activation method.
Get a Custom PVC High Speed Door Quote
Send us your door opening size, application, traffic condition and required accessories. SEPPES will recommend a suitable PVC high speed door configuration for your factory, warehouse or cleanroom project.
